SN74AVC20T245DGVR
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74AVC20T245DGVR
Datasheet:
Description:

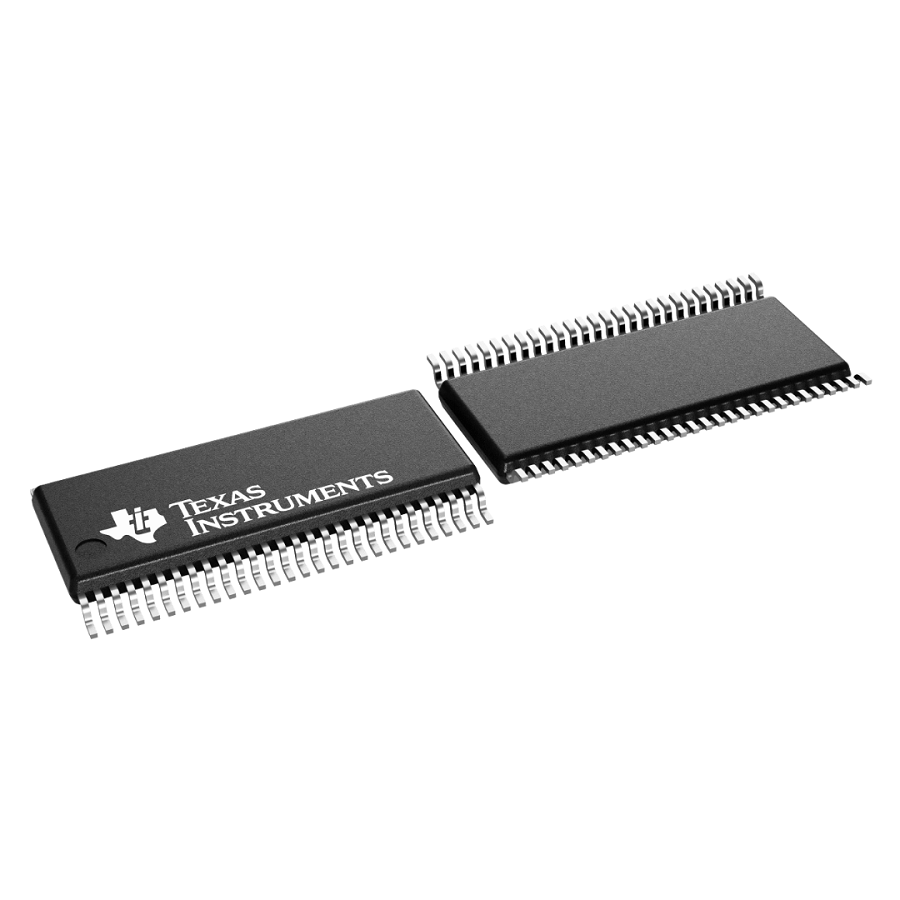

Voltage Level Shifters TVSOP-56 SMD/SMT Tri-State, Non-Inverted
| Parameter | Value |
|---|---|
| Length | 11.3 mm |
| Width | 4.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 56 |
| Height | 0 mm |
| Packaging | Reel |
| Thickness | 1.05 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 2 |
| Output Current | 12 mA |
| Number of Circuits | 2 |
| Output Type | Tri-State, Non-Inverted |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.2 V |
| Number of Channels | 2 |
| Number of Bits | 20 |
| Turn-On Delay Time | 10.3 ns |
| Propagation Delay | 10.3 ns |
| High Level Output Current | -12 mA |
| Low Level Output Current | 12 mA |
| Logic Function | Transceiver, Translator |
| Number of Inputs | 20 |
| Data Rate | 380 Mbps |
| Direction(Counting Sequence) | Bidirectional |
| Nominal Supply Current | 25 nA |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 day ago) |
| Channels per Circuit | 10 |
| Voltage - VCCB | 1.2 V to 3.6 V |
| Voltage - VCCA | 1.2 V to 3.6 V |
Stock: 2402
Distributors
pcbx
pcbxUnit Price$1.73978
Ext.Price$1.73978
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.73978 | $1.73978 |
| 10 | $1.29522 | $12.95220 |
| 25 | $1.18920 | $29.73000 |
| 50 | $1.12461 | $56.23050 |
| 100 | $1.06353 | $106.35300 |
| 300 | $1.01900 | $305.70000 |
| 500 | $0.97633 | $488.16500 |
| 1000 | $0.94470 | $944.70000 |
| 3000 | $0.90110 | $2703.30000 |
